Lu Lu looks forward to the next two decades of neutrino astrophysics, exploring the remarkable detector concepts needed to probe ultra-high energies from 1 EeV to 1 ZeV.
Lake Baikal, the Mediterranean Sea and the deep, clean ice at the South Pole: trackers. The atmosphere: a calorimeter. Mountains and even the Moon: targets. These will be the tools of the neutrino astrophysicist in the next two decades. Potentially observable energies dwarf those of the particle physicist doing repeatable experiments, rising up to 1 ZeV (1021 eV) for some detector concepts.
The natural accelerators of the neutrino astrophysicist are also humbling. Consider, for instance, the extraordinary relativistic jets emerging from the supermassive black hole in Messier 87 – an accelerator that stretches for about 5000 light years, or roughly 315 million times the distance from the Earth to the Sun.

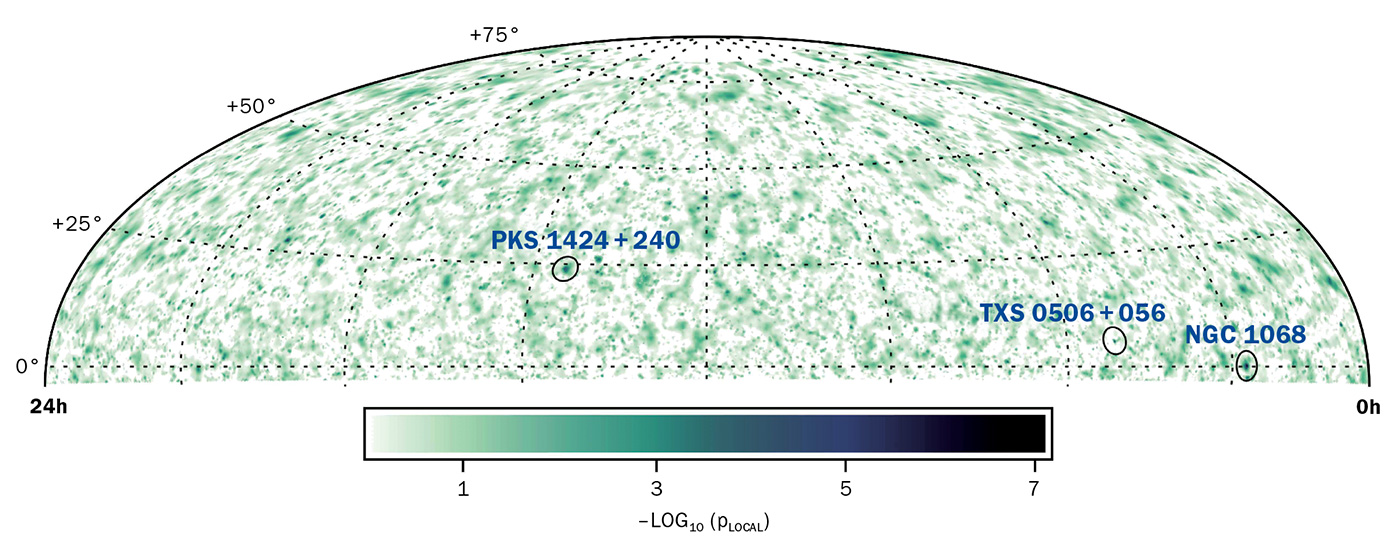

Alongside gravitational waves, high-energy neutrinos have opened up a new chapter in astronomy. They point to the most extreme events in the cosmos. They can escape from regions where high-energy photons are attenuated by gas and dust, such as NGC 1068, the first steady neutrino emitter to be discovered (see “The neutrino sky” figure). Their energies can rise orders of magnitude above 1 PeV (1015 eV), where the universe becomes opaque to photons due to pair production with the cosmic microwave background. Unlike charged cosmic rays, they are not deflected by magnetic fields, preserving their original direction.
Breaking into the exascale calls for new thinking
High-energy neutrinos therefore offer a unique window into some of the most profound questions in modern physics. Are there new particles beyond the Standard Model at the highest energies? What acceleration mechanisms allow nature to propel them to such extraordinary energies? And is dark matter implicated in these extreme events? With the observation of a 220+570–110 PeV neutrino confounding the limits set by prior observatories and opening up the era of ultra-high-energy neutrino astronomy (CERN Courier March/April 2025 p7), the time is ripe for a new generation of neutrino detectors on an even grander scale (see “Thinking big” table).
A cubic-kilometre ice cube
Detecting high-energy neutrinos is a serious challenge. Though the neutrino–nucleon cross section increases a little less than linearly with neutrino energy, the flux of cosmic neutrinos drops as the inverse square or faster, reducing the event rate by nearly an order of magnitude per decade. A cubic-kilometre-scale detector is required to measure cosmic neutrinos beyond 100 TeV, and Earth starts to be opaque as energies rise beyond a PeV or so, when the odds of a neutrino being absorbed as it passes through the planet are roughly even depending on the direction of the event.
The journey of cosmic neutrino detection began off the coast of the Hawaiian Islands in the 1980s, led by John Learned of the University of Hawaii at Mānoa. The DUMAND (Deep Underwater Muon And Neutrino Detector) project sought to use both an array of optical sensors to measure Cherenkov light and acoustic detectors to measure the pressure waves generated by energetic particle cascades in water. It was ultimately cancelled in 1995 due to engineering difficulties related to deep-sea installation, data transmission over long underwater distances and sensor reliability under high pressure.

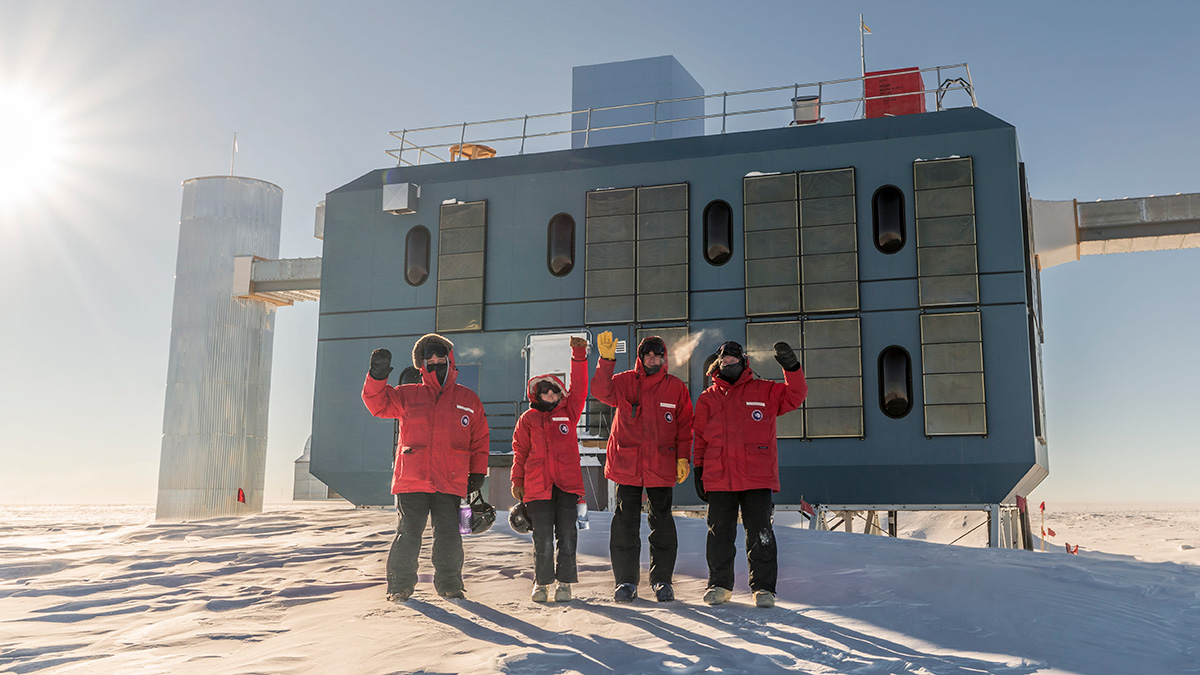

The next generation of cubic-kilometre-scale neutrino detectors built on DUMAND’s experience. The IceCube Neutrino Observatory has pioneered neutrino astronomy at the South Pole since 2011, probing energies from 10 GeV to 100 PeV, and is now being joined by experiments under construction such as KM3NeT in the Mediterranean Sea, which observed the 220 PeV candidate, and Baikal–GVD in Lake Baikal, the deepest lake on Earth. All three experiments watch for the deep inelastic scattering of high-energy neutrinos, using optical sensors to detect Cherenkov photons emitted by secondary particles.
A decade of data-taking from IceCube has been fruitful. The Milky Way has been observed in neutrinos for the first time. A neutrino candidate event has been observed that is consistent with the Glashow resonance – the resonant production in the ice of a real W boson by a 6.3 PeV electron–antineutrino – confirming a longstanding prediction from 1960. Neutrino emission has been observed from supermassive black holes in NGC 1068 and TXS 0506+056. A diffuse neutrino flux has been discovered beyond 10 TeV. Neutrino mixing parameters have been measured. And flavour ratios have been constrained: due to the averaging of neutrino oscillations over cosmological distances, significant deviations from a 1:1:1 ratio of electron, muon and tau neutrinos could imply new physics such as the violation of Lorentz invariance, non-standard neutrino interactions or neutrino decay.
The sensitivity and global coverage of water-Cherenkov neutrino observatories is set to increase still further. The Pacific Ocean Neutrino Experiment (P-ONE) aims to establish a cubic-kilometre-scale deep-sea neutrino telescope off the coast of Canada; IceCube will expand the volume of its optical array by a factor eight; and the TRIDENT and HUNT experiments, currently being prototyped in the South China Sea, may offer the largest detector volumes of all. These detectors will improve sky coverage, enhance angular resolution, and increase statistical precision in the study of neutrino sources from 1 TeV to 10 PeV and above.
Breaking into the exascale calls for new thinking.
Into the exascale
Optical Cherenkov detectors have been exceptionally successful in establishing neutrino astronomy, however, the attenuation of optical photons in water and ice requires the horizontal spacing of photodetectors to a few hundred metres at most, constraining the scalability of the technology. To achieve sensitivity to ultra-high energies measured in EeV (1018 eV), an instrumented area of order 100 km2 would be required. Constructing an optical-based detector on such a scale is impractical.
One solution is to exchange the tracking volume of IceCube and its siblings with a larger detector that uses the atmosphere as a calorimeter: the deposited energy is sampled on the Earth’s surface.
The Pierre Auger Observatory in Argentina epitomises this approach. If IceCube is presently the world’s largest detector by volume, the Pierre Auger Observatory is the world’s largest detector by area. Over an area of 3000 km2, 1660 water Cherenkov detectors and 24 fluorescence telescopes sample the particle showers generated when cosmic rays with energies beyond 10 EeV strike the atmosphere, producing billions of secondary particles. Among the showers it detects are surely events caused by ultra-high-energy neutrinos, but how might they be identified?
Out on a limb
One of the most promising approaches is to filter events based on where the air shower reaches its maximum development in the atmosphere. Cosmic rays tend to interact after traversing much less atmosphere than neutrinos, since the weakly interacting neutrinos have a much smaller cross-section than the hadronically interacting cosmic rays. In some cases, tau neutrinos can even skim the Earth’s atmospheric edge or “limb” as seen from space, interacting to produce a strongly boosted tau lepton that emerges from the rock (unlike an electron) to produce an upward-going air shower when it decays tens of kilometres later – though not so much later (unlike a muon) that it has escaped the atmosphere entirely. This signature is not possible for charged cosmic rays. So far, Auger has detected no neutrino candidate events of either topology, imposing stringent upper limits on the ultra-high-energy neutrino flux that are compatible with limits set by IceCube. The AugerPrime upgrade, soon expected to be fully operational, will equip each surface detector with scintillator panels and improved electronics.

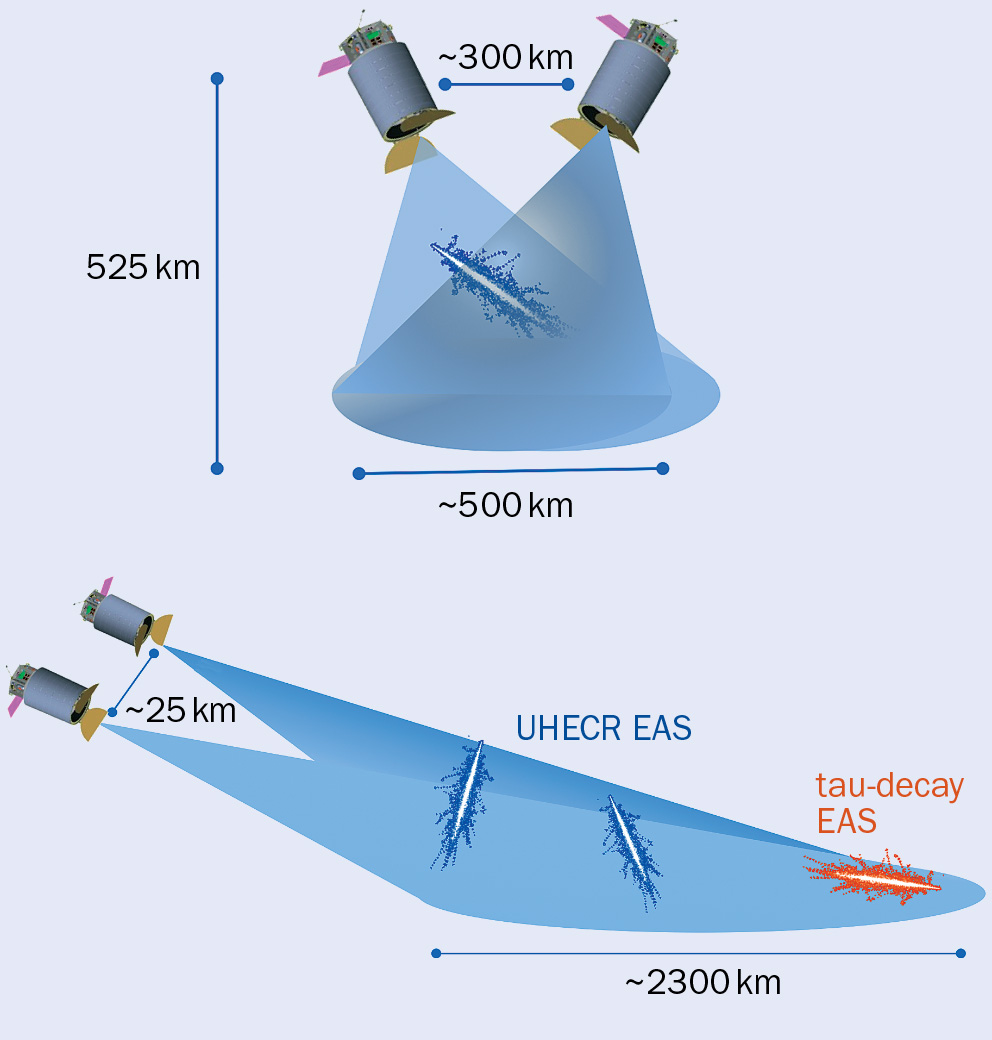

Experiments in space are being developed to detect these rare showers with an even larger instrumentation volume. POEMMA (Probe of Extreme Multi-Messenger Astrophysics) is a proposed satellite mission designed to monitor the Earth’s atmosphere from orbit. Two satellites equipped with fluorescence and Cherenkov detectors will search for ultraviolet photons produced by extensive air showers (see “Exascale from above” figure). EUSO-SPB2 (Extreme Universe Space Observatory on a Super Pressure Balloon 2) will test the same detection methods from the vantage point of high-atmosphere balloons. These instruments can help distinguish cosmic rays from neutrinos by identifying shallow showers and up-going events.
Another way to detect ultra-high-energy neutrinos is by using mountains and valleys as natural neutrino targets. This Earth-skimming technique also primarily relies on tau neutrinos, as the tau leptons produced via deep inelastic scattering in the rock can emerge from Earth’s crust and decay within the atmosphere to generate detectable particle showers in the air.

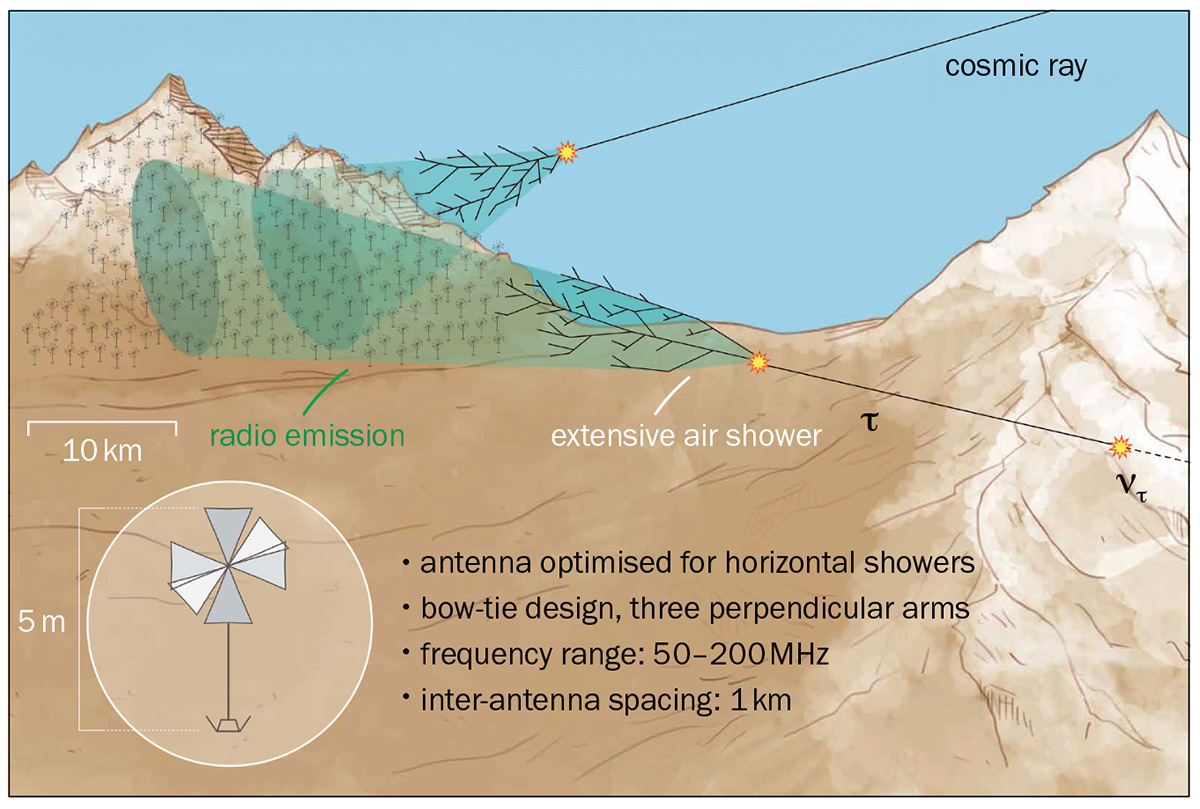

The Giant Radio Array for Neutrino Detection (GRAND) aims to detect radio signals from these tau-induced air showers using a large array of radio antennas spread over thousands of square kilometres (see “Earth skimming” figure). GRAND is planned to be deployed in multiple remote, mountainous locations, with the first site in western China, followed by others in South America and Africa. The Tau Air-Shower Mountain-Based Observatory (TAMBO) has been proposed to be deployed on the face of the Colca Canyon in the Peruvian Andes, where an array of scintillators will detect the electromagnetic signals from tau-induced air showers.
Another proposed strategy that builds upon the Earth-skimming principle is the Trinity experiment, which employs an array of Cherenkov telescopes to observe nearby mountains. Ground-based air Cherenkov detectors are known for their excellent angular resolution, allowing for precise pointing to trace back to the origin of the high-energy primary particles. Trinity is a proposed system of 18 wide-field Cherenkov telescopes optimised for detecting neutrinos in the 10 PeV–1000 PeV energy range from the direction of nearby mountains – an approach validated by experiments such as Ashra–NTA, deployed on Hawaii’s Big Island utilising the natural topography of the Mauna Loa, Mauna Kea and Hualālai volcanoes.
All these ultra-high-energy experiments detect particle showers as they develop in the atmosphere, whether from above, below or skimming the surface. But “Askaryan” detectors operate deep within the ice of the Earth’s poles, where both the neutrino interaction and detection occur.
In 1962 Soviet physicist Gurgen Askaryan reasoned that electromagnetic showers must develop a net negative charge excess as they develop, due to the Compton scattering of photons off atomic electrons and the ionisation of atoms by charged particles in the shower. As the charged shower propagates faster than the phase velocity of light in the medium, it should emit radiation in a manner analogous to Cherenkov light. However, there are key differences: Cherenkov radiation is typically incoherent and emitted by individual charged particles, while Askaryan radiation is coherent, being produced by a macroscopic buildup of charge, and is significantly stronger at radio frequencies. The Askaryan effect was experimentally confirmed at SLAC in 2001.
Optimised arrays
Because the attenuation length of radio waves is an order of magnitude longer than for optical photons, it becomes feasible to build much sparser arrays of radio antennas to detect the Askaryan signals than the compact optical arrays used in deep ice Cherenkov detectors. Such detectors are optimised to cover thousands of square kilometres, with typical energy thresholds beyond 100 PeV.
The Radio Neutrino Observatory in Greenland (RNO-G) is a next-generation in-ice radio detector currently under construction on the ~3 km-thick ice sheet above central Greenland, operating at frequencies in the 150–700 MHz range. RNO-G will consist of a sparse array of 35 autonomous radio detector stations, each separated by 1.25 km, making it the first large-scale radio neutrino array in the northern hemisphere.
In the southern hemisphere, the proposed IceCube-Gen2 will complement the aforementioned eightfold expanded optical array with a radio component covering a remarkable 500 km2. The cold Antarctic ice provides an optimal medium for radio detection, with radio attenuation lengths of roughly 2 km facilitating cost-efficient instrumentation of the large volumes needed to measure the low ultra-high-energy neutrino flux. The radio array will combine in-ice omnidirectional antennas 150 m below the surface with high-gain antennas at a depth of 15 m and upward-facing antennas on the surface to veto the cosmic-ray background.

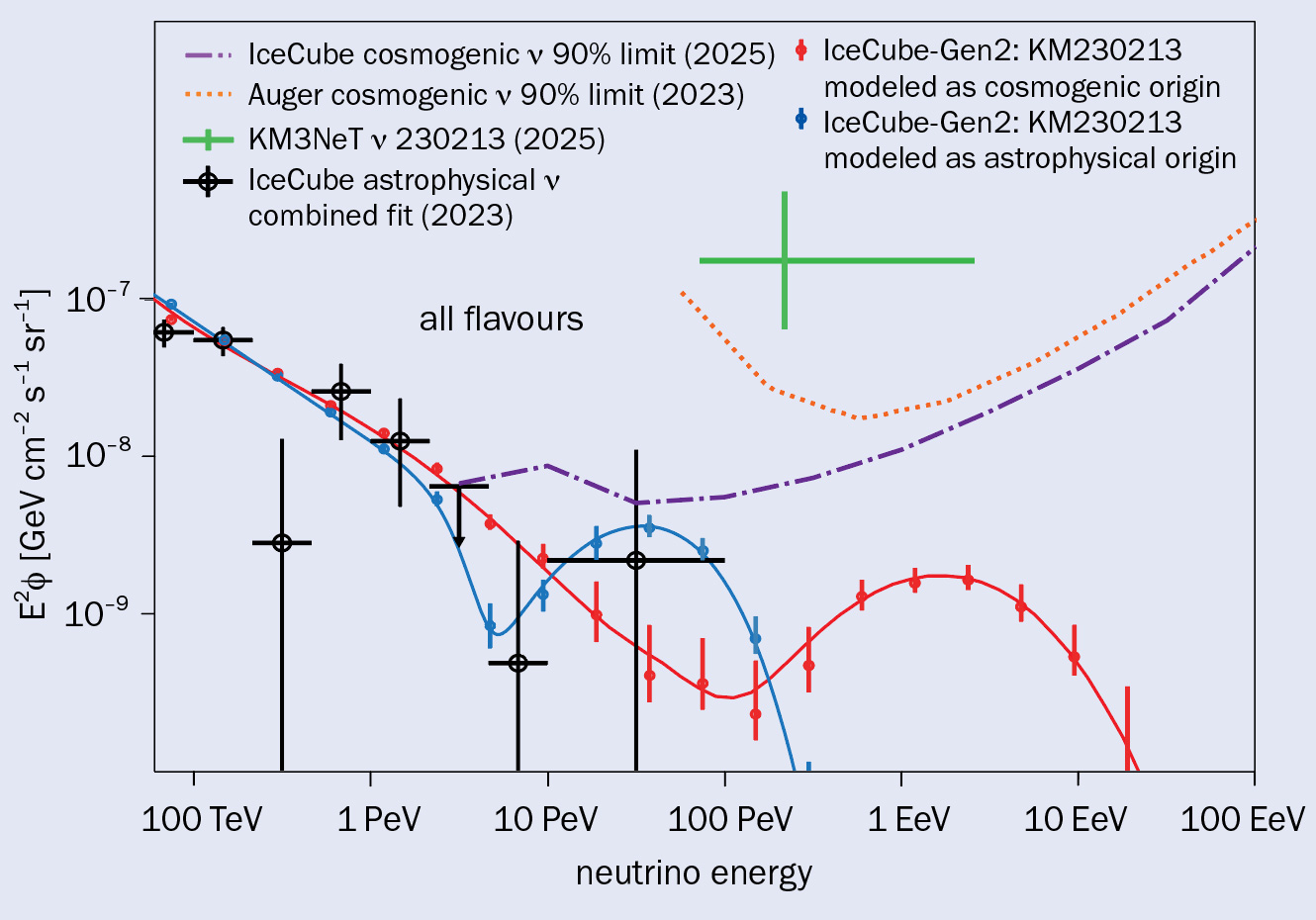

The IceCube-Gen2 radio array will have the sensitivity to probe features of the spectrum of astrophysical neutrino beyond the PeV scale, addressing the tension between upper limits from Auger and IceCube, and KM3NeT’s 220 +570–110PeV neutrino candidate – the sole ultra-high-energy neutrino yet observed. Extrapolating an isotropic and diffuse flux, IceCube should have detected 75 events in the 72–2600 PeV energy range over its operational period. However, no events have been observed above 70 PeV.
Perhaps the most ambitious way to observe ultra-high-energy neutrinos is to use the Moon as a target
If the detected KM3NeT event has a neutrino energy of around 100 PeV, it could originate from the same astrophysical sources responsible for accelerating ultra-high-energy cosmic rays. In this case, interactions between accelerated protons and ambient photons from starlight or synchrotron radiation would produce pions that decay into ultra-high-energy neutrinos. Alternatively, if its true energy is closer to 1 EeV, it is more likely cosmogenic: arising from the Greisen–Zatsepin–Kuzmin process, in which ultra-high-energy cosmic rays interact with cosmic microwave background photons, producing a Δ-resonance that decays into pions and ultimately neutrinos. IceCube-Gen2 will resolve the spectral shape from PeV to 10 EeV and differentiate between these two possible production mechanisms (see “Diffuse neutrino landscape” figure).
Moonshots
Remarkably, the Radar Echo Telescope (RET) is exploring using radar to actively probe the ice for transient signals. Unlike Askaryan-based detectors, which passively listen for radio pulses generated by charge imbalances in particle cascades, RET’s concept is to beam a radar signal and watch for reflections off the ionisation caused by particle showers. SLAC’s T576 experiment demonstrated the concept in the lab in 2022 by observing a radar echo from a beam of high-energy electrons scattering off a plastic target. RET has now been deployed in Greenland, where it seeks echoes from down-going cosmic rays as a proof of concept.

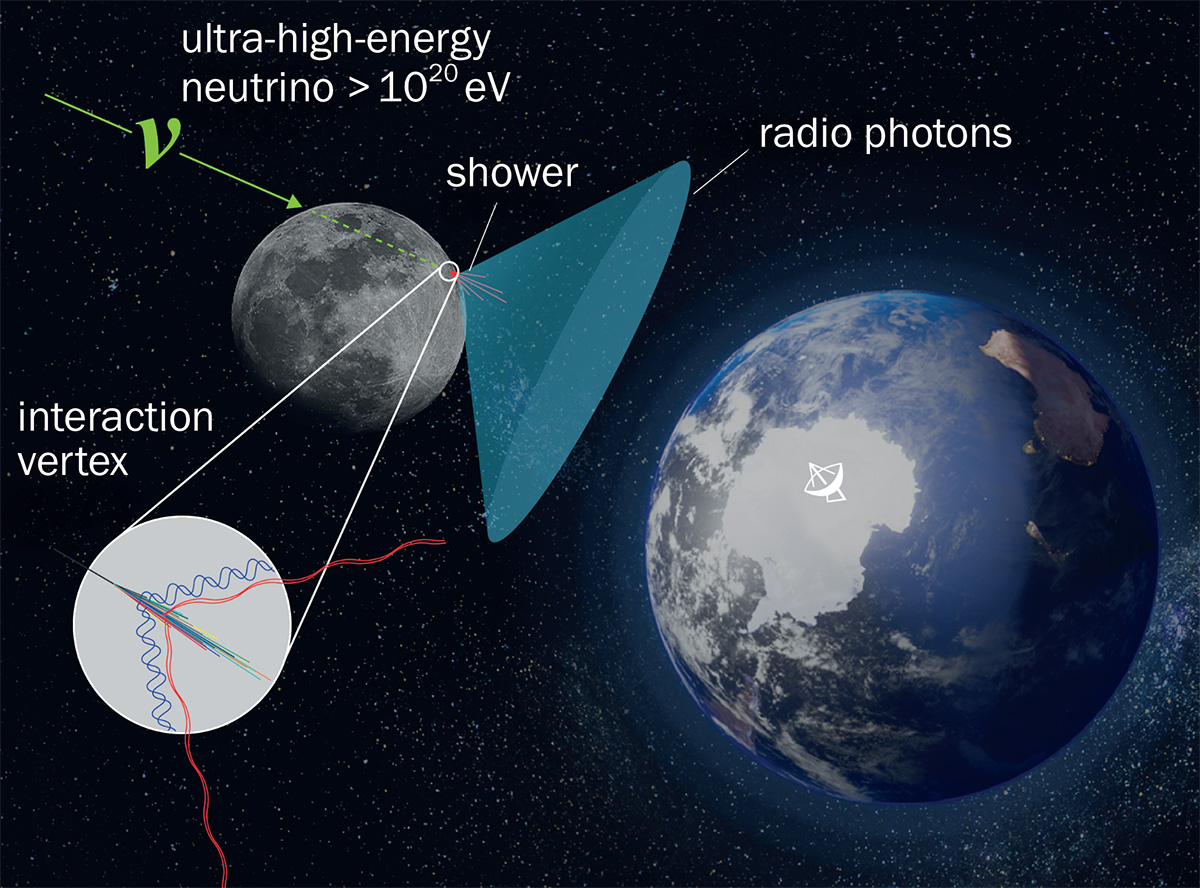

Perhaps the most ambitious way to observe ultra-high-energy neutrinos foresees using the Moon as a target. When neutrinos with energies above 100 EeV interact near the rim of the Moon, they can induce particle cascades that generate coherent Askaryan radio emission which could be detectable on Earth (see “Moon skimming” figure). Observations could be conducted from Earth-based radio telescopes or from satellites orbiting the Moon to improve detection sensitivity. Lunar Askaryan detectors could potentially be sensitive to neutrinos up to 1 ZeV (1021 eV). No confirmed detections have been reported so far.
Neutrino network

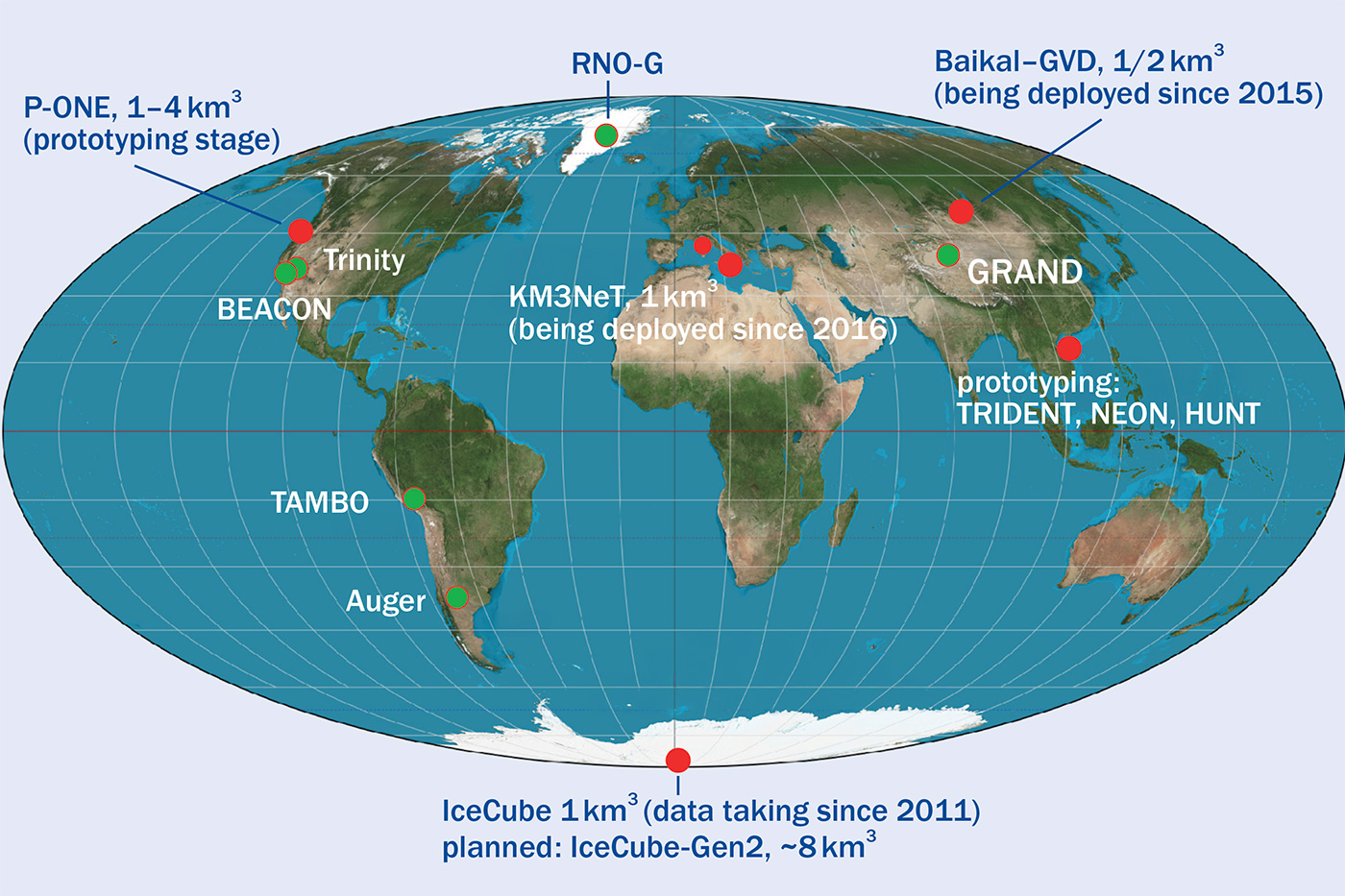

Proposed neutrino observatories are distributed across the globe – a necessary requirement for full sky coverage, given the Earth is not transparent to ultra-high-energy neutrinos (see “Full-sky coverage” figure). A network of neutrino telescopes ensures that transient astrophysical events can always be observed as the Earth rotates. This is particularly important for time-domain multi-messenger astronomy, enabling coordinated observations with gravitational wave detectors and electromagnetic counterparts. The ability to track neutrino signals in real time will be key to identifying the most extreme cosmic accelerators and probing fundamental physics at ultra-high energies.
Further reading
IceCube Collab. 2021 Nature 591 220.
M Ackermann et al. 2022 JHEAp 36 55.
IceCube Collab. 2022 Science 378 538.
IceCube Collab. 2023 Science 380 1338.
KM3NeT Collab. 2025 Nature 638 376.
