Clean di-pions reveal vector mesons

Heavy-ion collisions usually have very high multiplicities due to colour flow and multiple nucleon interactions. However, when the ions are separated by greater than about twice their radii in so-called ultra-peripheral collisions (UPC), electromagnetic-induced interactions dominate. In these colour-neutral interactions, the ions remain intact and a central system with few particles is produced whose summed transverse momenta, being the Fourier transform of the distance between the ions, is typically less than 100 MeV/c.

In the photoproduction of vector mesons, a photon, radiated from one of the ions, fluctuates into a virtual vector meson long before it reaches the target and then interacts with one or more nucleons in the other ion. The production of ρ mesons has been measured at the LHC by ALICE in PbPb and XeXe collisions, while J/ψ mesons have been measured in PbPb collisions by ALICE, CMS and LHCb. Now, LHCb has isolated a precisely measured, high-statistics sample of di-pions with backgrounds below 1% in which several vector mesons are seen.

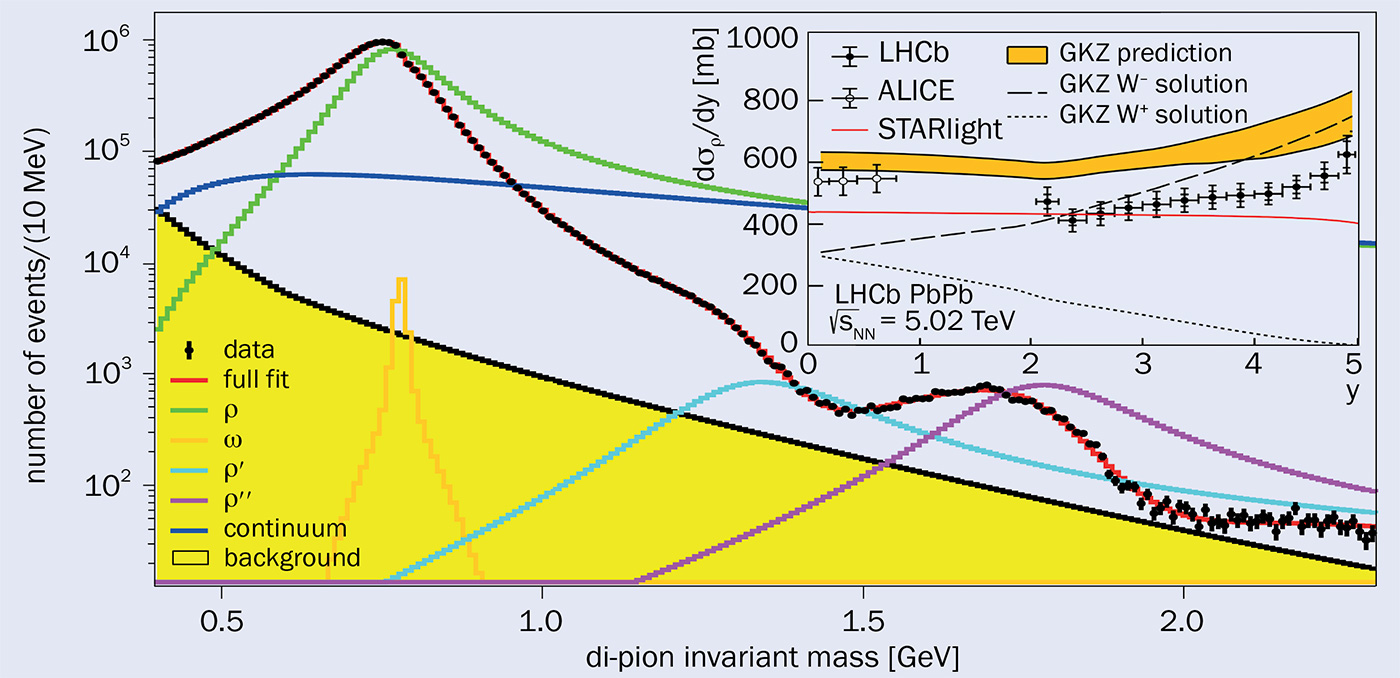

Figure 1 shows the invariant mass distribution of the pions, and the fit to the data requires contributions from the ρ meson, continuum ππ, the ω meson and two higher mass resonances at about 1.35 and 1.80 GeV, consistent with excited ρ mesons. The higher structure was also discernible in previous measurements by STAR and ALICE. Since its discovery in 1961, the ρ meson has proved challenging to describe because of its broad width and because of interference effects. More data in the di-pion channel, particularly when practically background-free down almost to production threshold, are therefore welcome. These data may help with hadronic corrections to the prediction of muon g-2: the dip and bump structure at high masses seen by LHCb is qualitatively similar to that observed by BaBar in e⁺e^– → π⁺π^– scattering (CERN Courier March/April 2025 p21). From the invariant mass spectrum, LHCb has measured the cross-sections for ρ, ω, ρ′ and ρ′′ as a function of rapidity in photoproduction on lead nuclei.

Naively, comparison of the photo­production on the nucleus and on the proton should simply scale with the number of nucleons, and can be calculated in the impulse approximation that only takes into account the nuclear form factor, neglecting all other potential nuclear effects.

However, nuclear shadowing, caused by multiple interactions as the meson passes through the nucleus, leads to a suppression (CERN Courier January/February 2025 p31). In addition, there may be further non-linear QCD effects at play.

Elastic re-scattering is usually described through a Glauber calculation that takes account of multiple elastic scatters. This is extended in the GKZ model using Gribov’s formalism to include inelastic scatters. The inset in figure 1 shows the measured differential cross-section for the ρ meson as a function of rapidity for LHCb data compared to the GKZ prediction, to a prediction for the STARlight generator, and to ALICE data at central rapidities. Additional suppression due to nuclear effects is observed above that predicted by GKZ.
